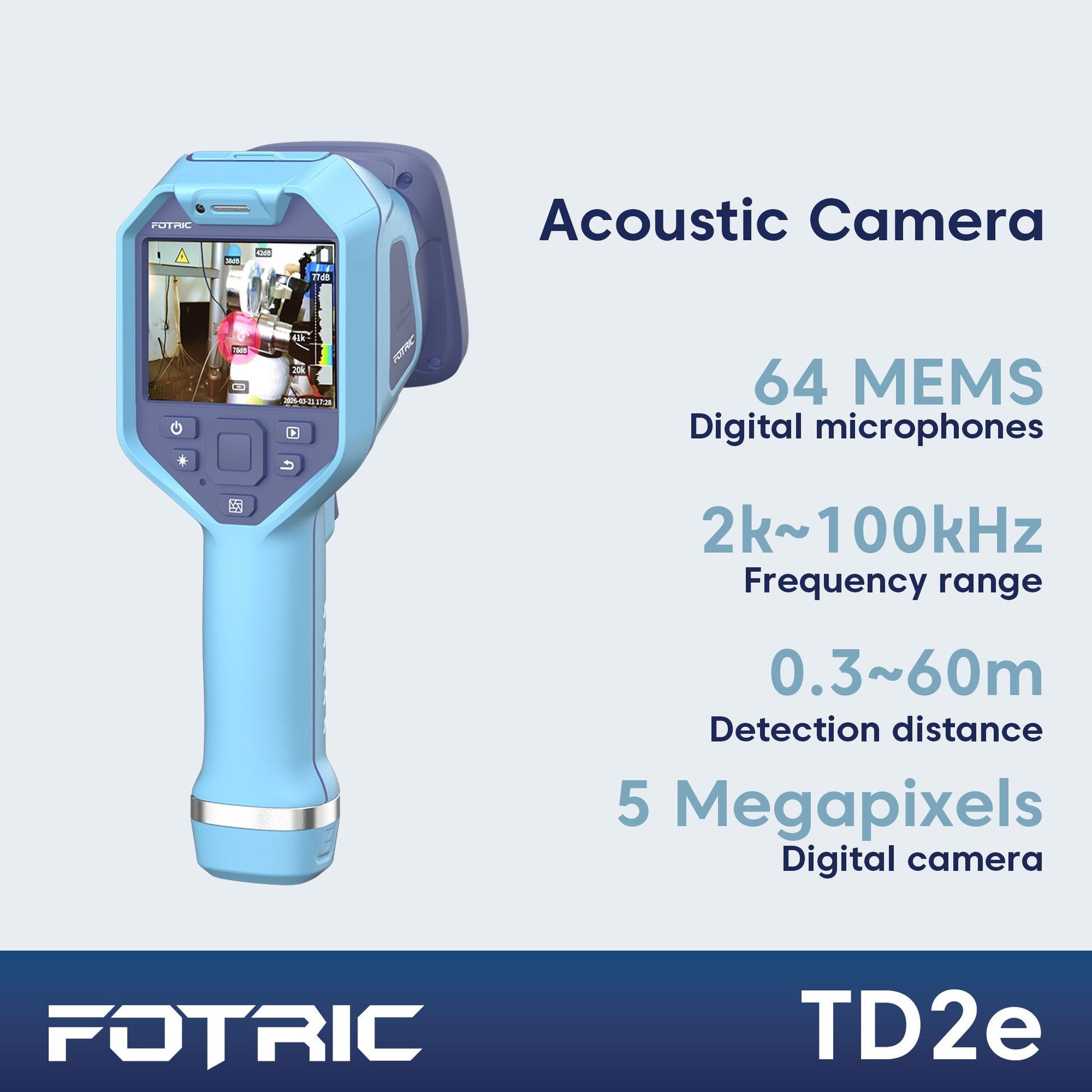

FOTRIC TD2e Acoustic Imager – Front View
FOTRIC TD2e Acoustic Imager – Front View
FOTRIC TD2e Acoustic Imager – Front View

FOTRIC TD2e Acoustic Imager

Fotric
€999,00
€999,00
Taxe inclu. Frais de port calculés à la caisse.
Quantity:
Free Shipping
30-Day Return Policy
1-Year Warranty
24/7 Customer Support

Advanced Acoustic Imaging Technology

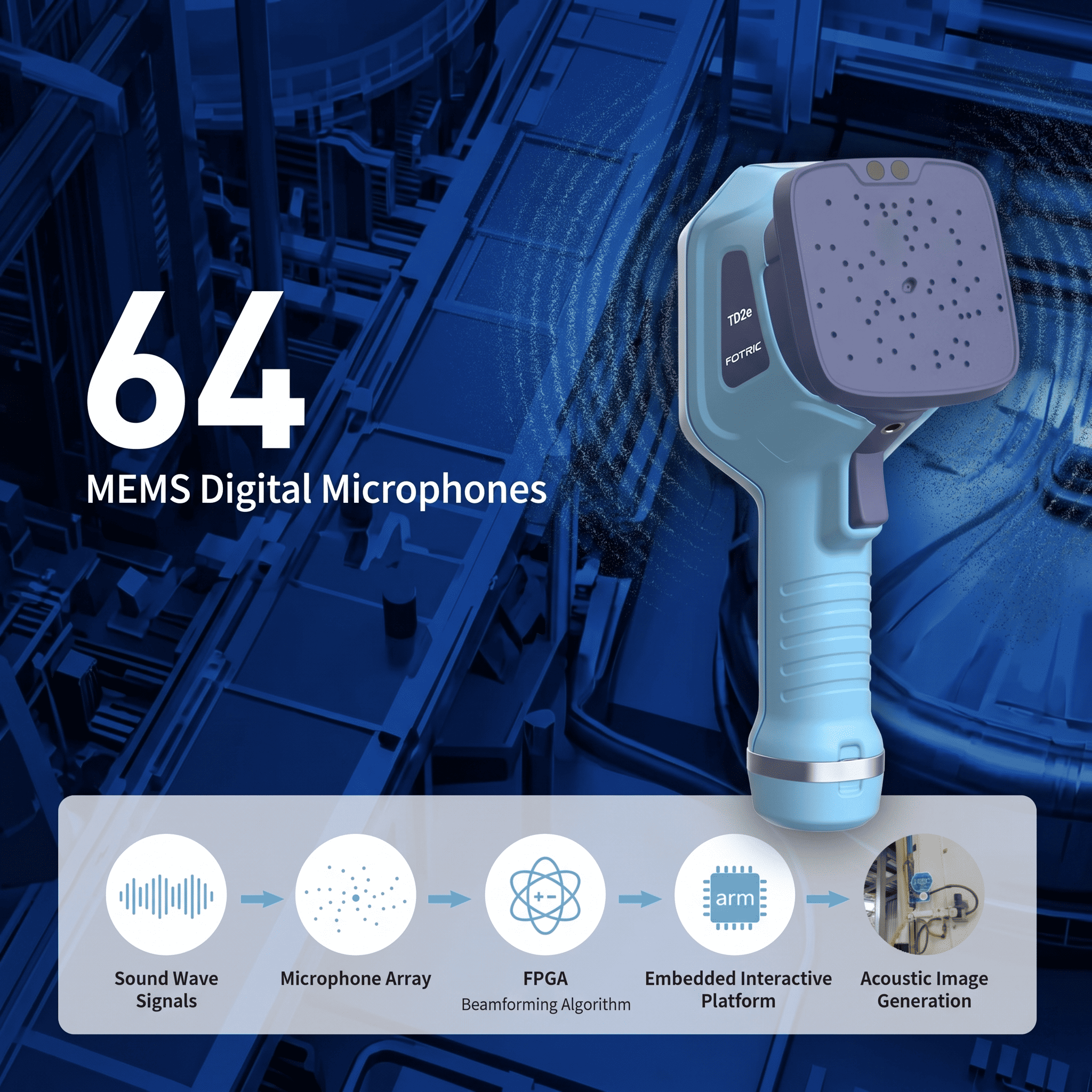

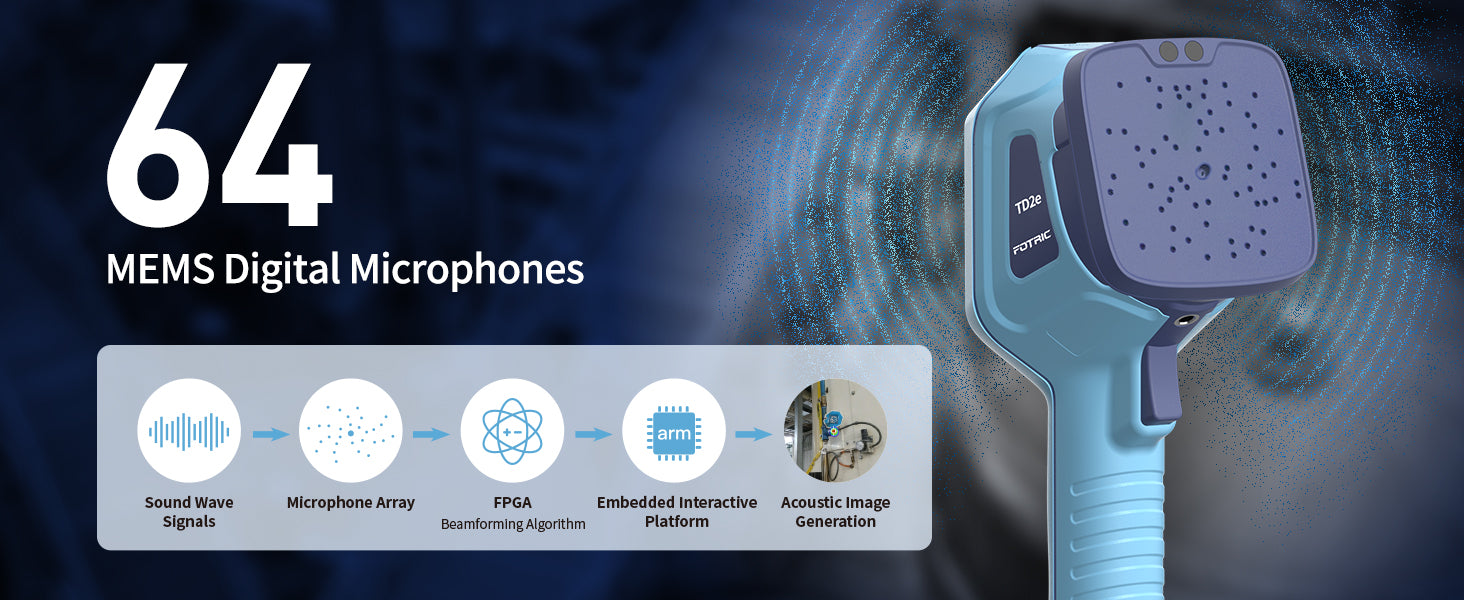

Equipped with 64 high-sensitivity MEMS digital microphones and a 58° × 45° field of view (FOV) for accurate sound source localization. Covers a wide frequency range from 2kHz to 100kHz, with a working distance of 0.3~60m, ideal for detecting both audible and ultrasonic leaks, partial discharge and mechanical anomalies. Also features a 5-megapixel industrial digital camera for detailed visual reference.

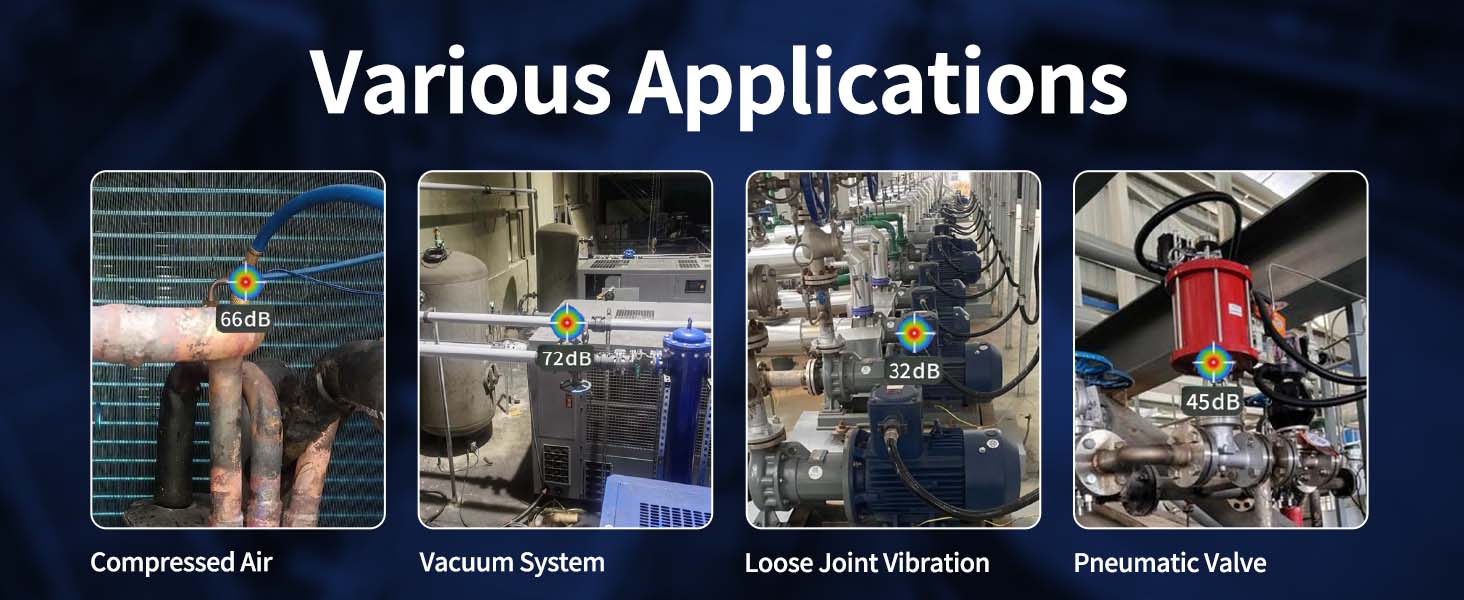

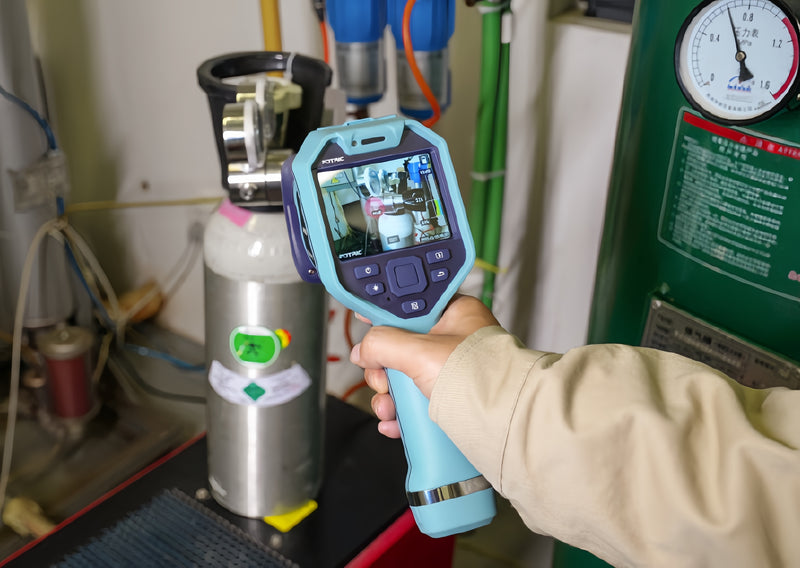

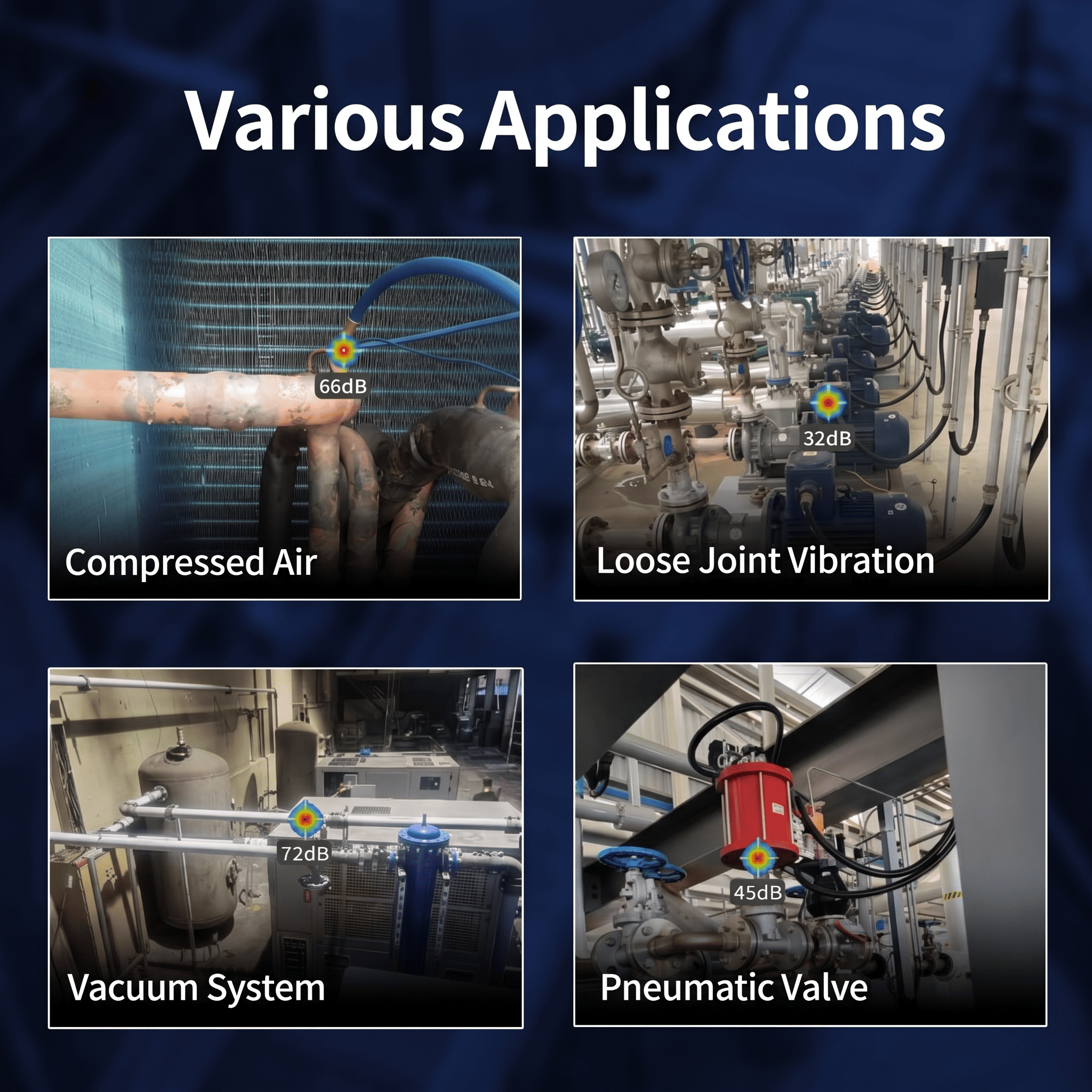

Quickly Locate Various Industrial Leaks & Vibration Problems

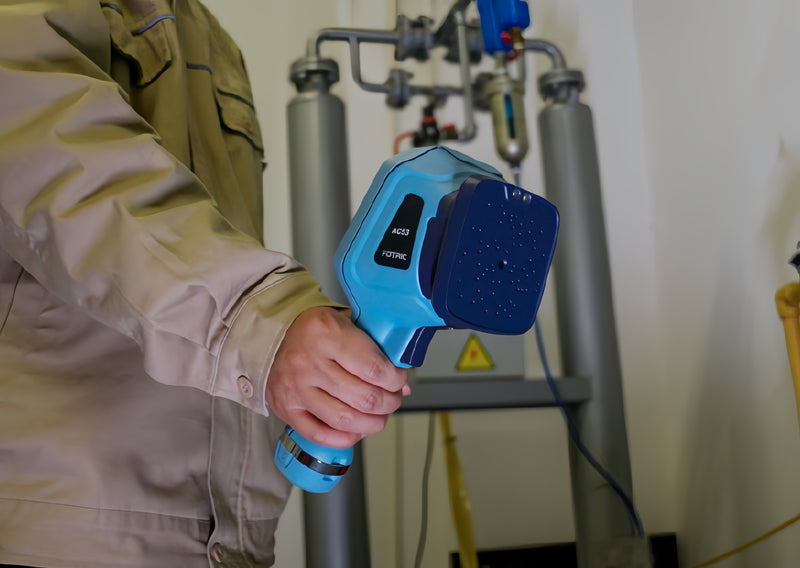

FOTRIC TD2e acoustic imaging camera enables compressed air leak detection, vacuum leak identification, pneumatic valve leakage check, loose joint vibration detection and seal integrity verification — all without contact or downtime. Instantly visualize abnormal sound sources in real time to improve maintenance efficiency and prevent costly failures.

Acoustic Image Focus & Sound Pressure Level Measurement

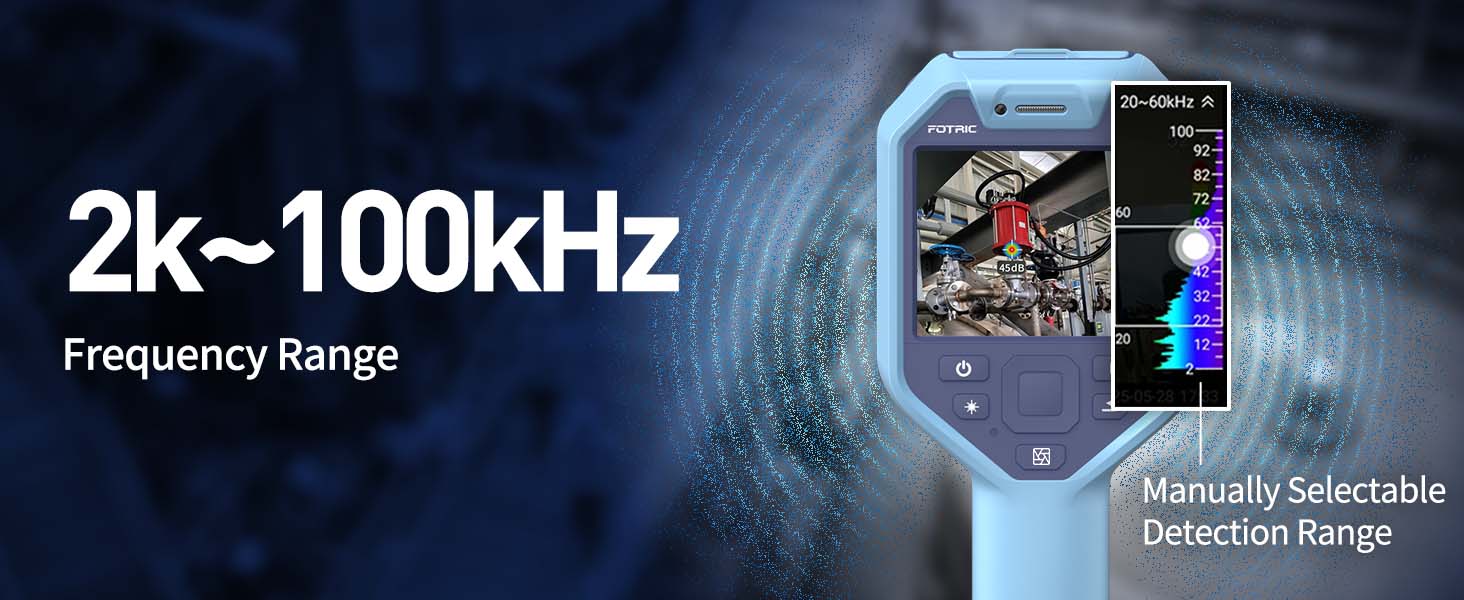

Combines adaptive dynamic noise reduction and micro-detection algorithms to achieve focused localization of sound sources. Supports manual frequency adjustment and peak frequency display, with real-time dB-level data output paired with acoustic images, well-suited for locating and diagnosing a wide range of industrial sound sources.

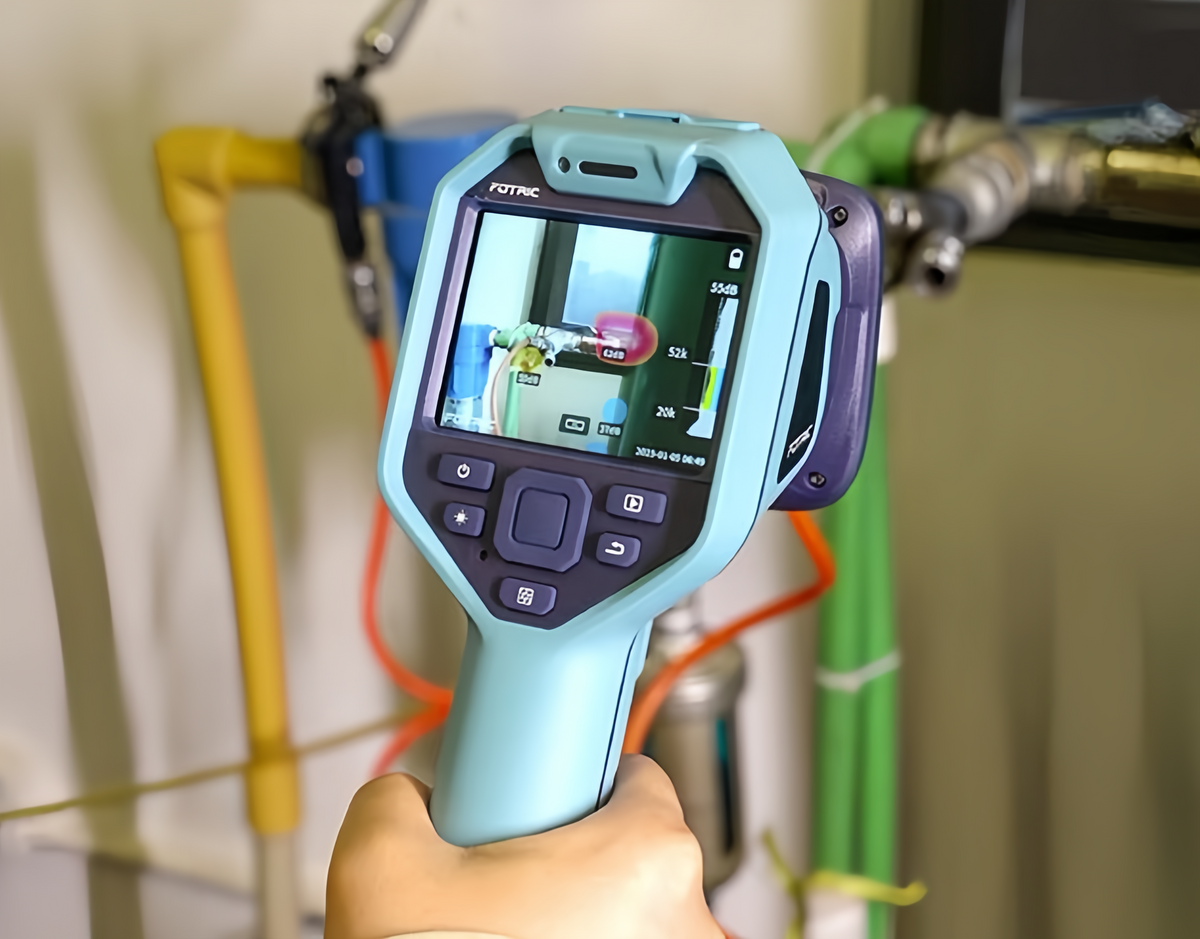

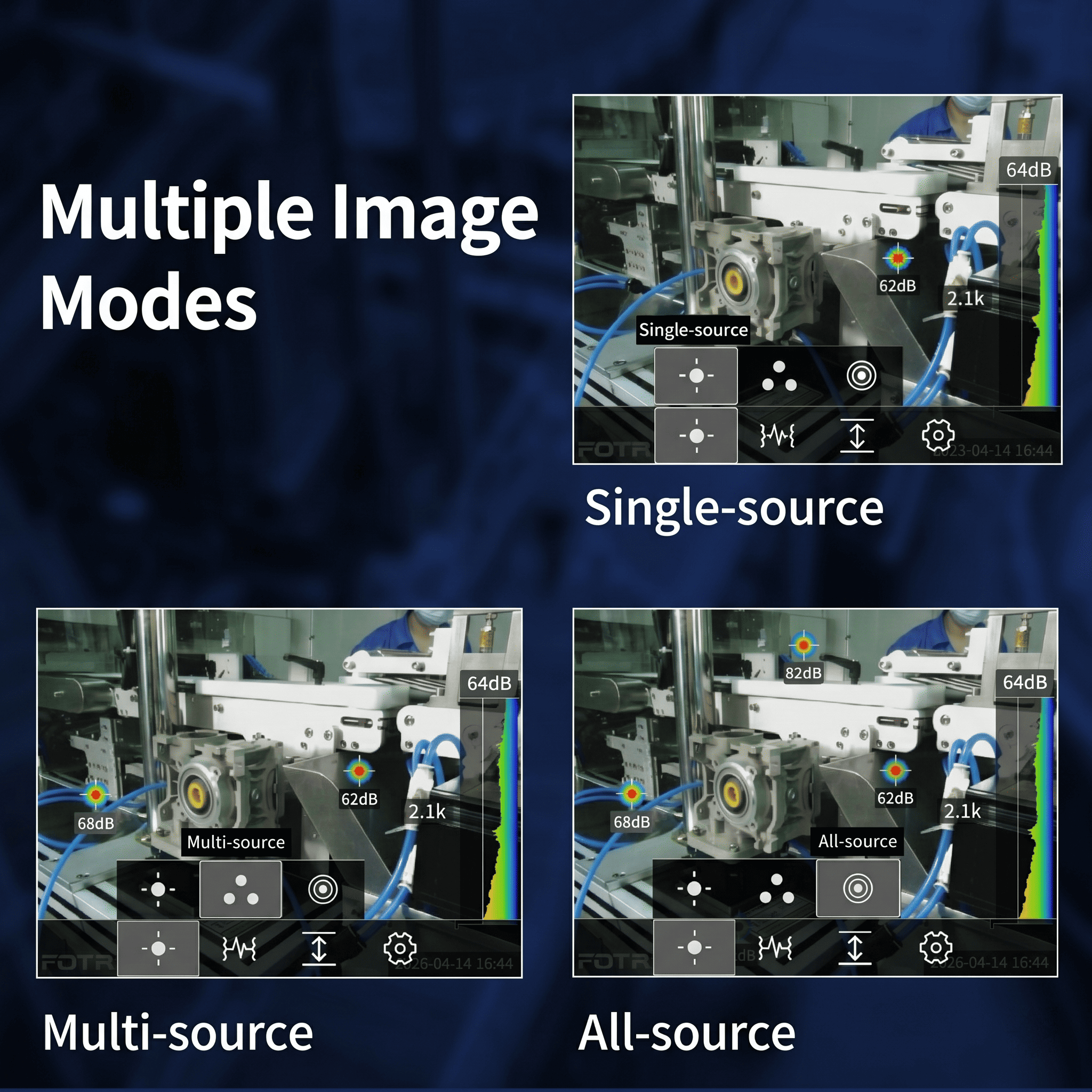

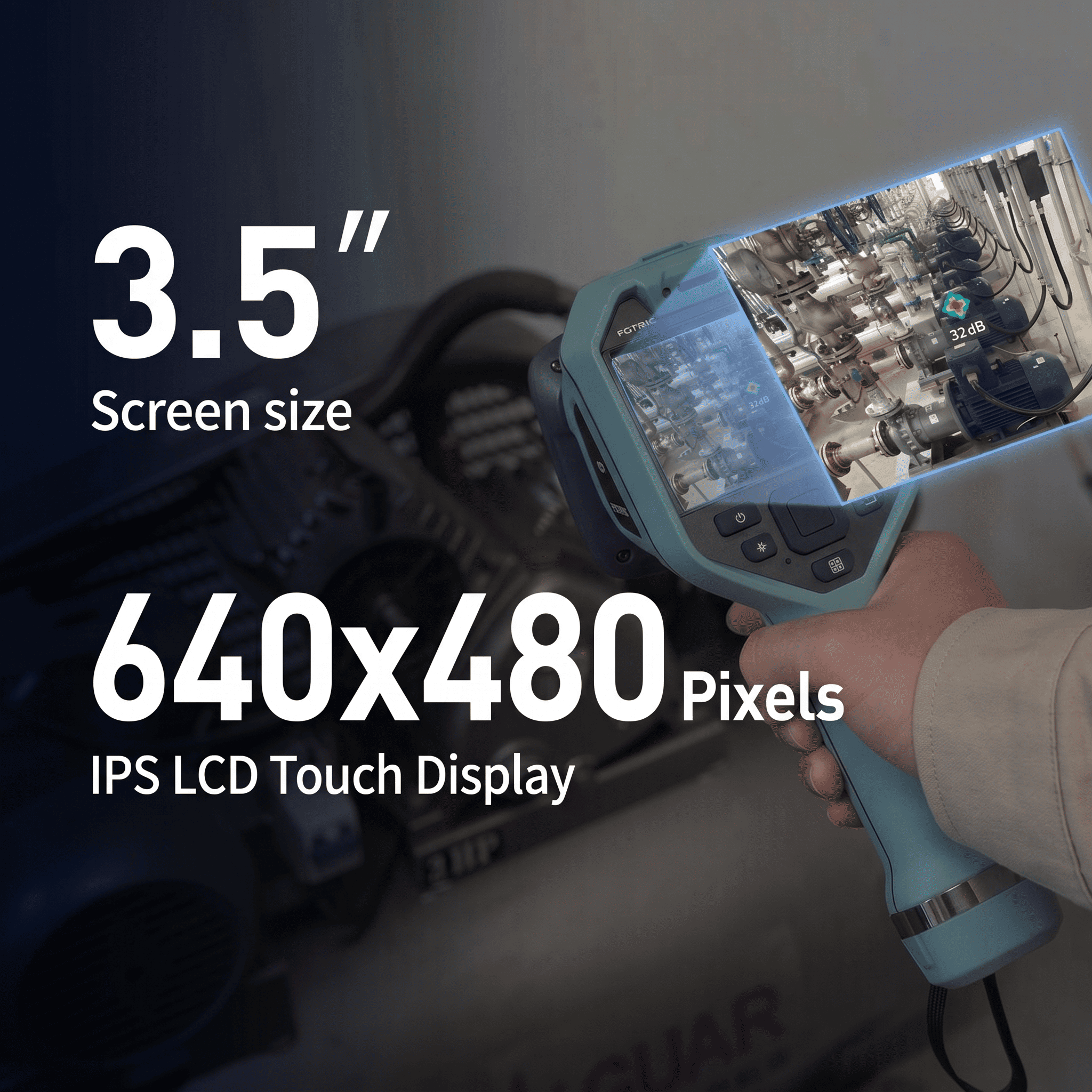

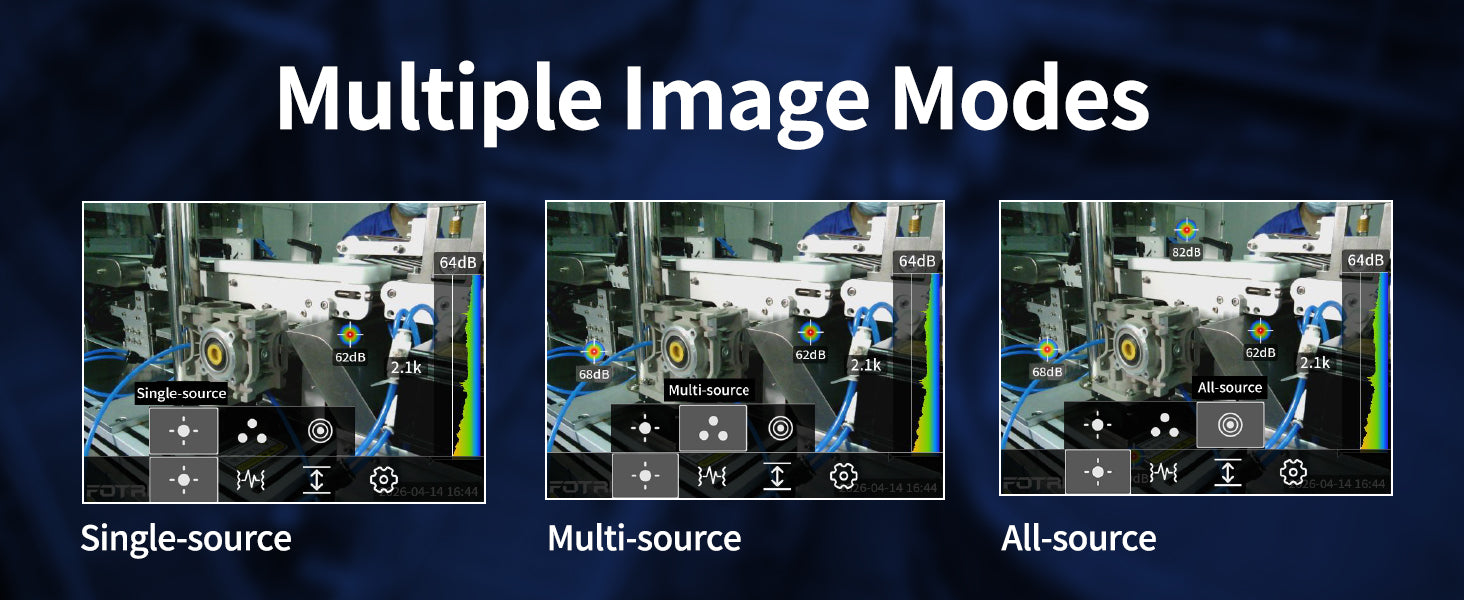

High-Resolution Touch Screen & Multiple Display Modes

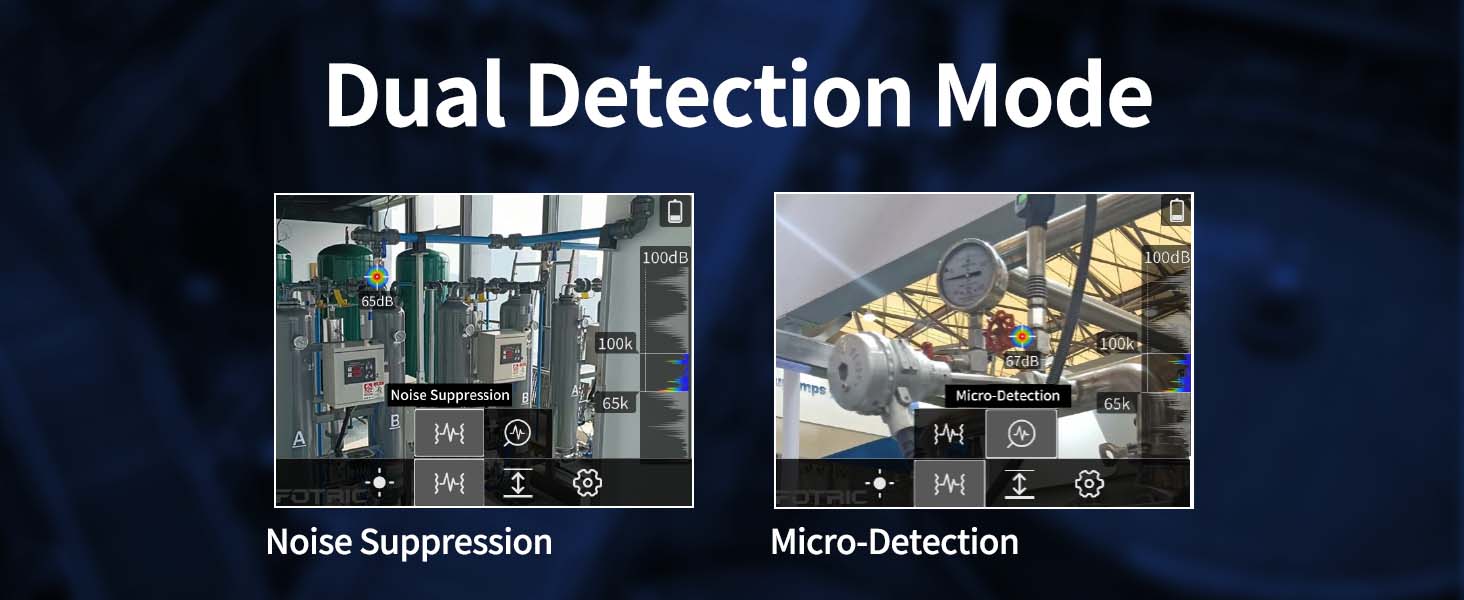

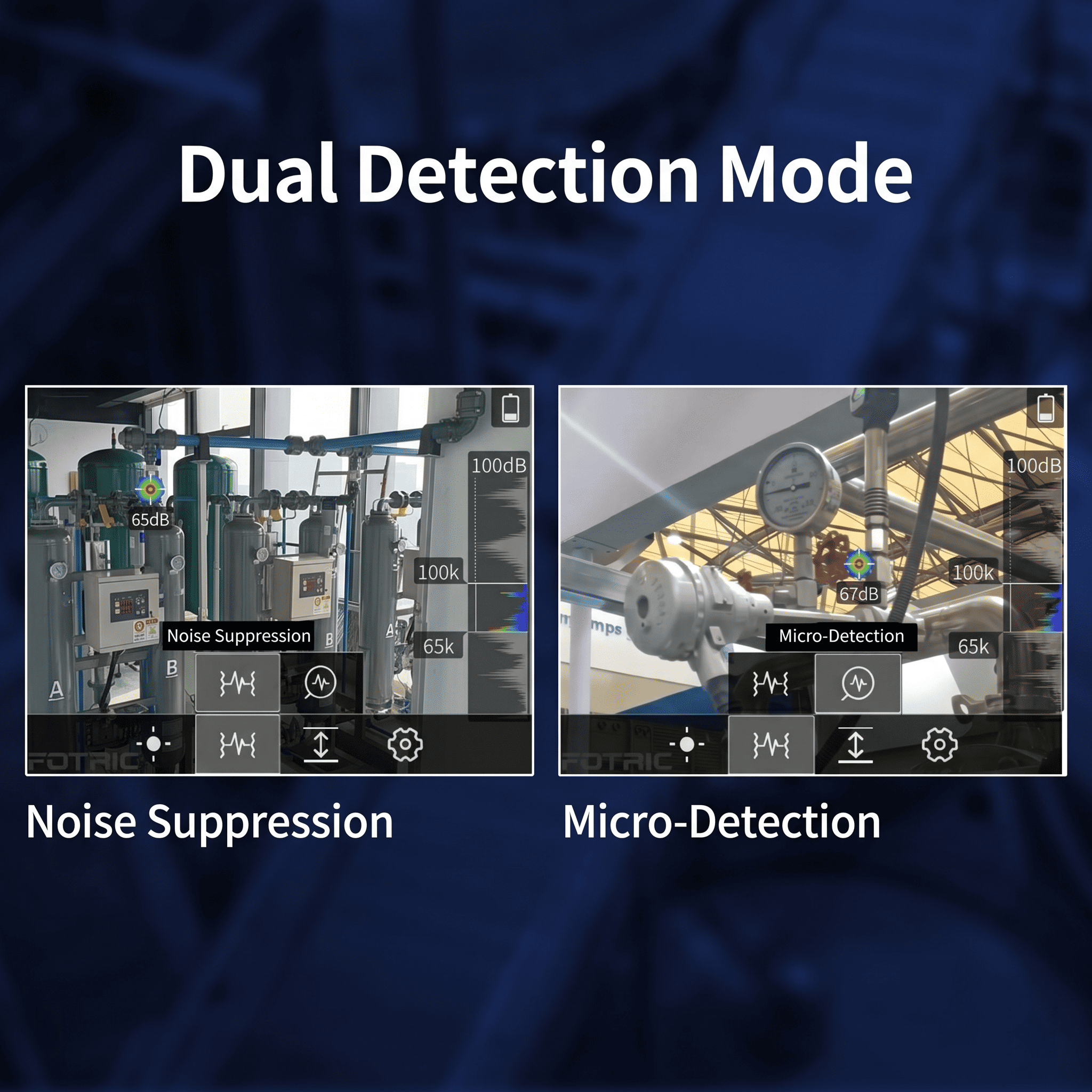

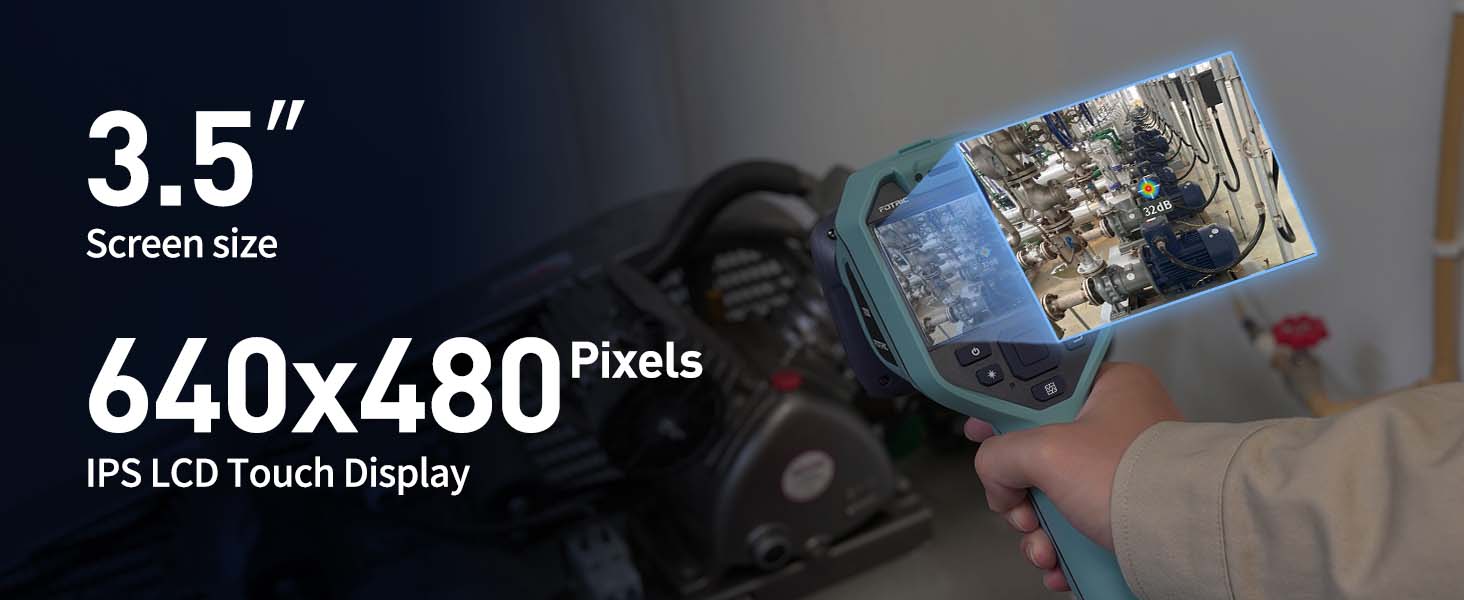

The 3.5" high-resolution IPS touchscreen (640 × 480) with protective cover glass supports single-source, multi-source and all-source display modes. Equipped with noise suppression and micro-detection dual modes, it can overlay sound pressure data on visible-light images for faster, more intuitive diagnostics.

Portable & Durable Design

Lightweight and rugged with IP54 rating and 2-meter drop resistance. The FOTRIC TD2e acoustic imager includes a 5000mAh field-replaceable rechargeable battery for ≥3 hours of continuous operation, ideal for field inspections in industrial, HVAC, manufacturing and energy sectors.

FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.

FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.

Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.

FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
1000

1,000+ Trusted Collaborations Worldwide

From individual users to professional teams and organizations, over 1,000 partners trust our products in their daily work—delivering precision performance, stable operation, and dependable results in real-world conditions.

What Is Fotric For?

Overview

0.5–100 m Detection distance

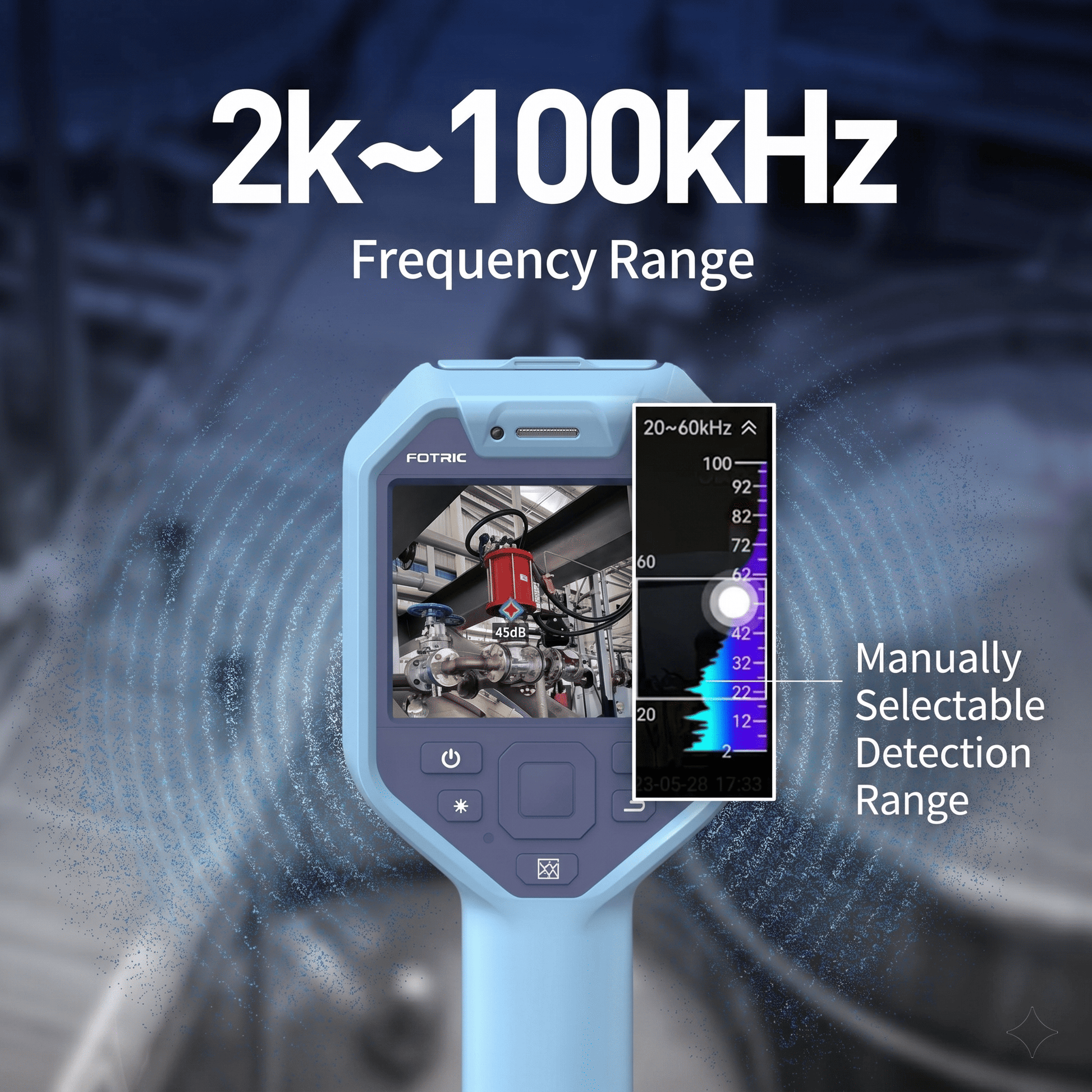

2–100 kHz Frequency range

58° × 45° Field of View
