FOTRIC TD2 Geek Imagerie acoustique portable
€699,00
FOTRIC TD2 Geek Imagerie acoustique portable

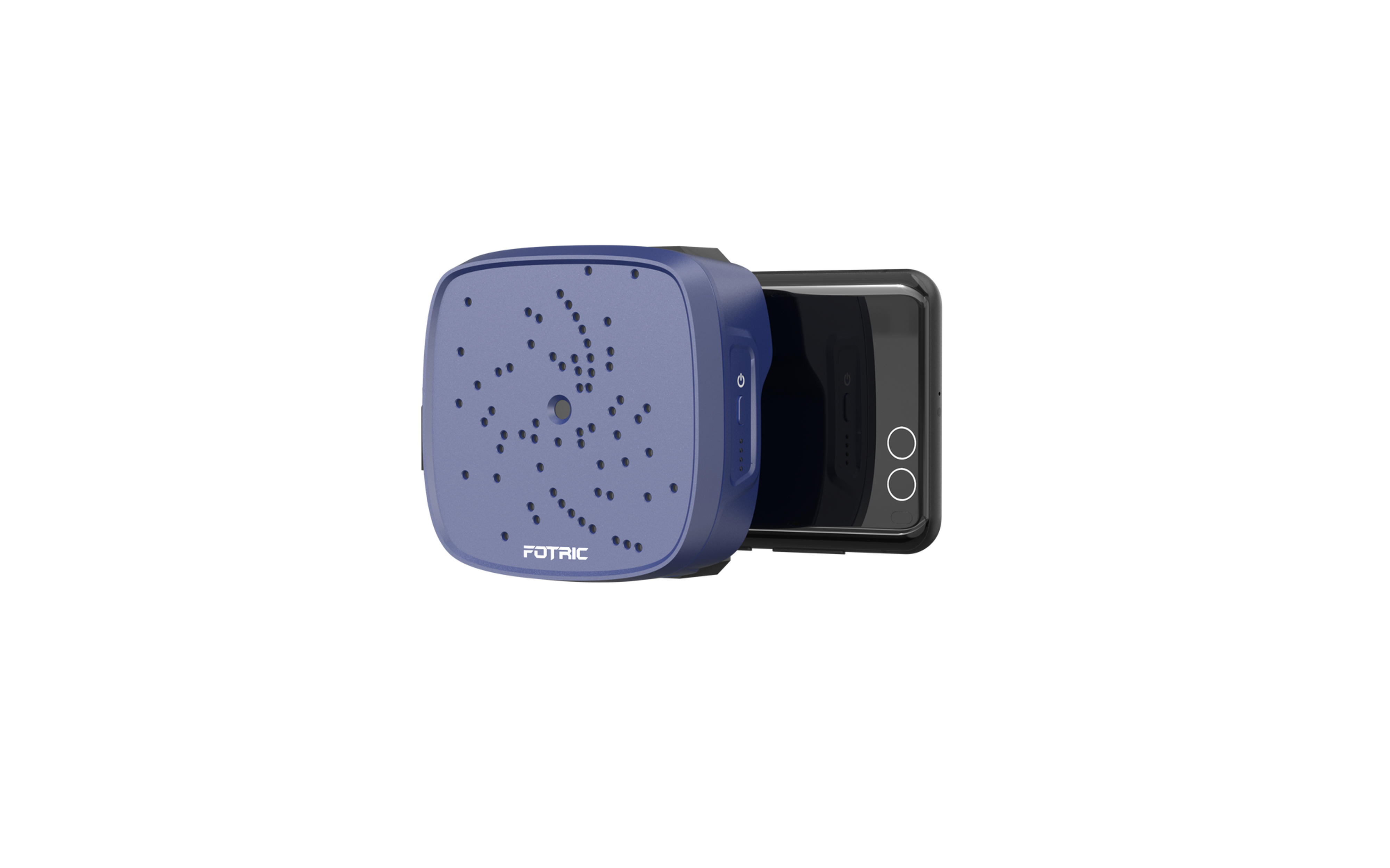

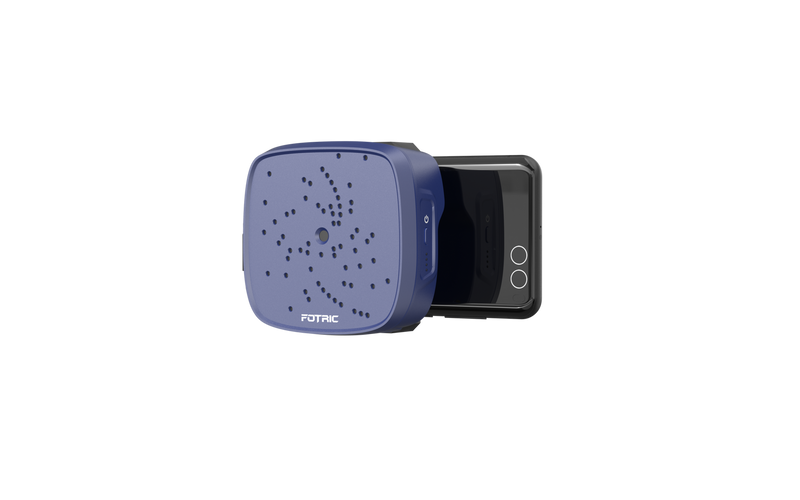

FotricCaméra d'imagerie acoustique FOTRIC TD2 Geek, 64 microphones numériques MEMS, imager acoustique pour smartphones Android, détection de bruit, 66°×52° FOV, plage de fréquences de 2 à 50 kHz
- Prix habituel
- €699,00
- Prix soldé
- €699,00
- Prix habituel
-
Taxe inclu.
Frais de port calculés à la caisse.
-
Voir le son en temps réel

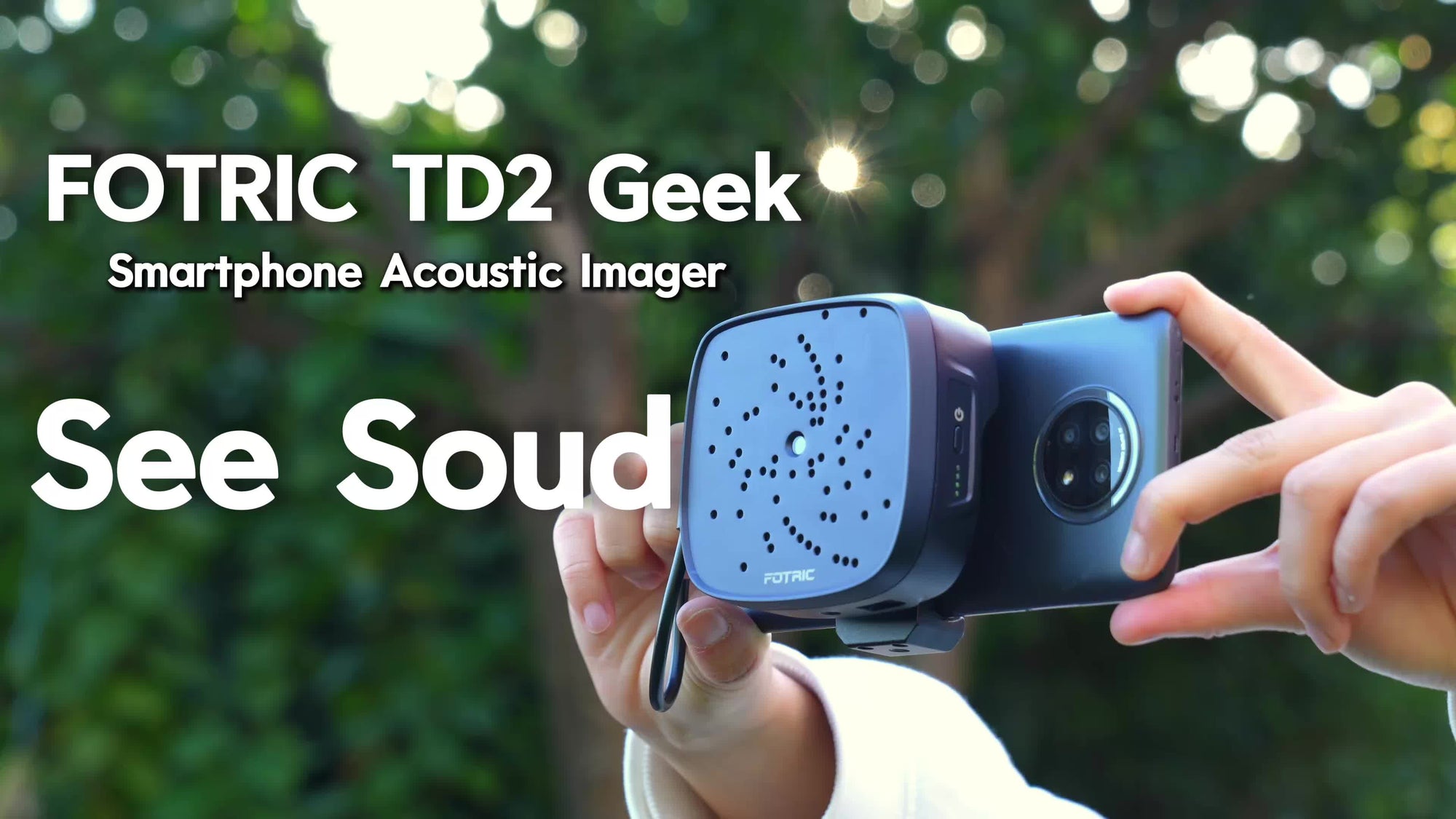

Transformez votre smartphone en un puissant imager acoustique avec le FOTRIC TD2 Geek. Grâce à un réseau de 64 microphones, il capture et visualise les sources sonores de 2 kHz à 50 kHz, vous permettant littéralement de voir d'où proviennent les sons avec une superposition sonore colorée sur votre écran. -
De la nature au contrôle du bruit
Idéal pour l'observation des oiseaux, le suivi des insectes, la recherche d'animaux de compagnie et l'observation de la faune. Aussi parfait pour les usages industriels : localisez les fuites d'air comprimé, les bourdonnements électriques, les bruits mécaniques et les sons des murs avec une précision exceptionnelle. -
Découvrez la science du son
Visualisez votre voix, les tons des instruments ou l'acoustique des pièces. Idéal pour les musiciens, les enseignants et les ingénieurs du son pour analyser la hauteur, la résonance et la distribution du son dans l'environnement de travail. -
Configuration simple Plug & Play

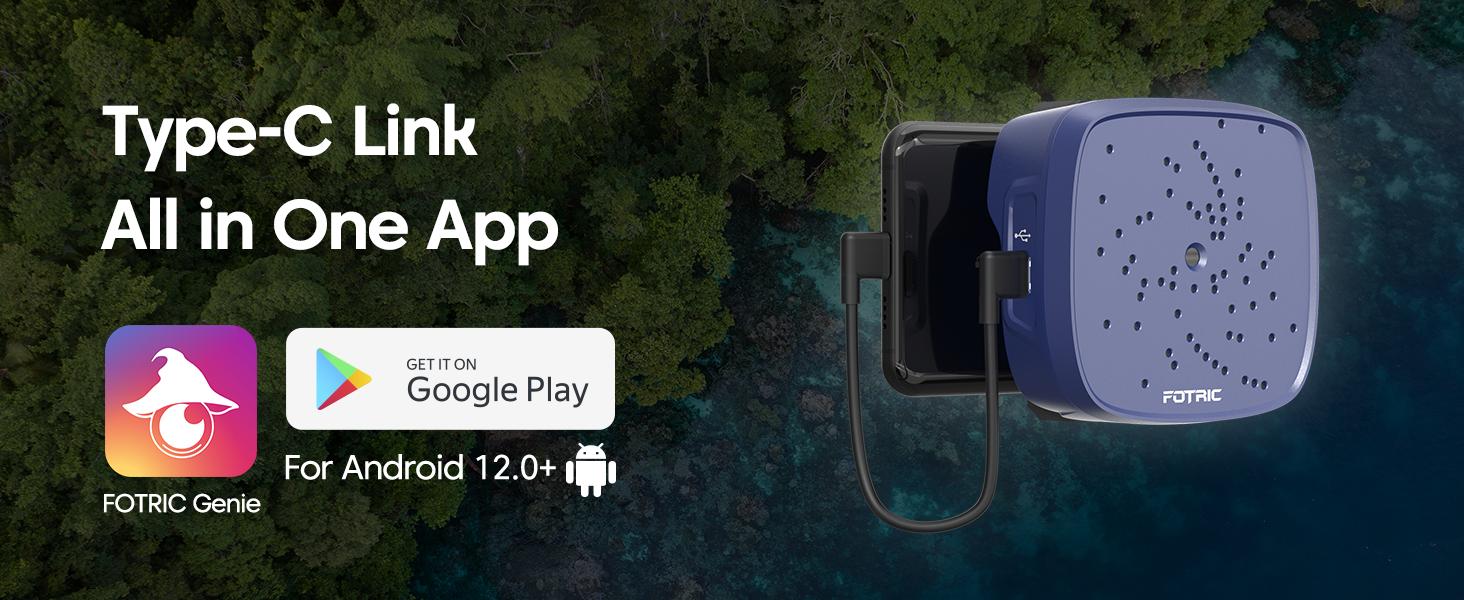

Il suffit de brancher le TD2 Geek sur votre smartphone via USB-C, de télécharger l'application FOTRIC Genie et de commencer l'imagerie instantanément. Aucun calibrage complexe, il suffit de photographier et d'analyser en déplacement. -
Portable et plus d'applications

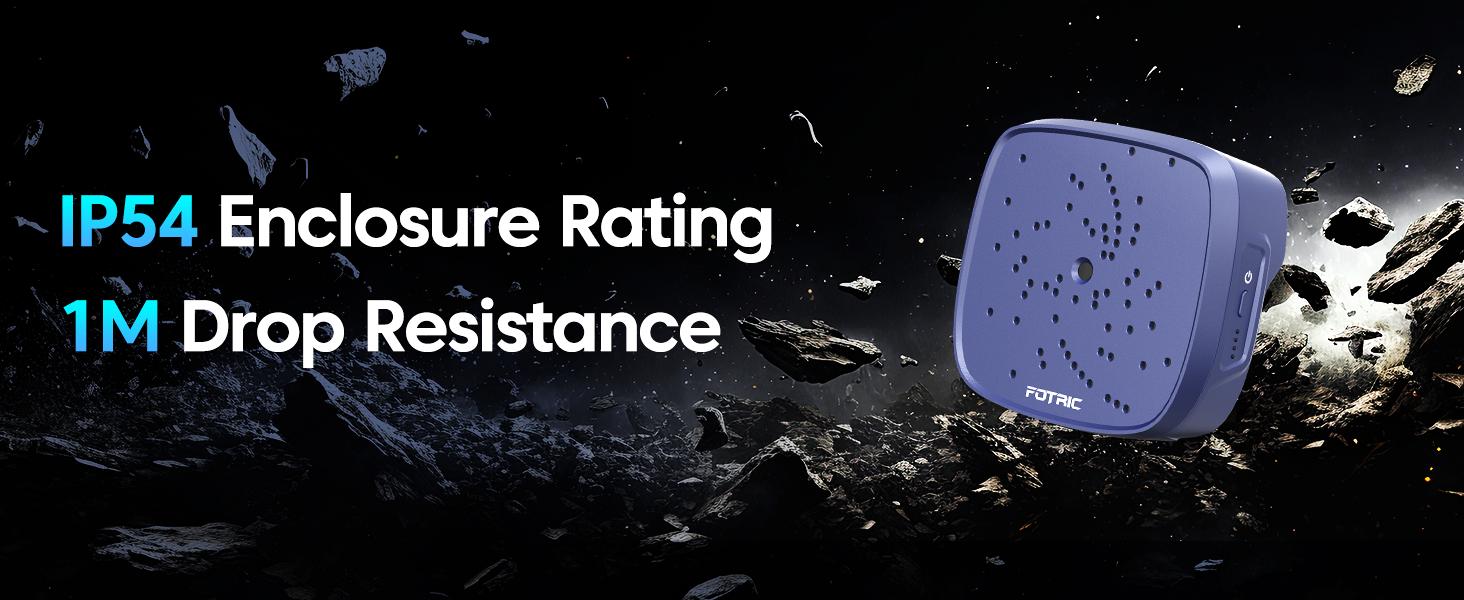

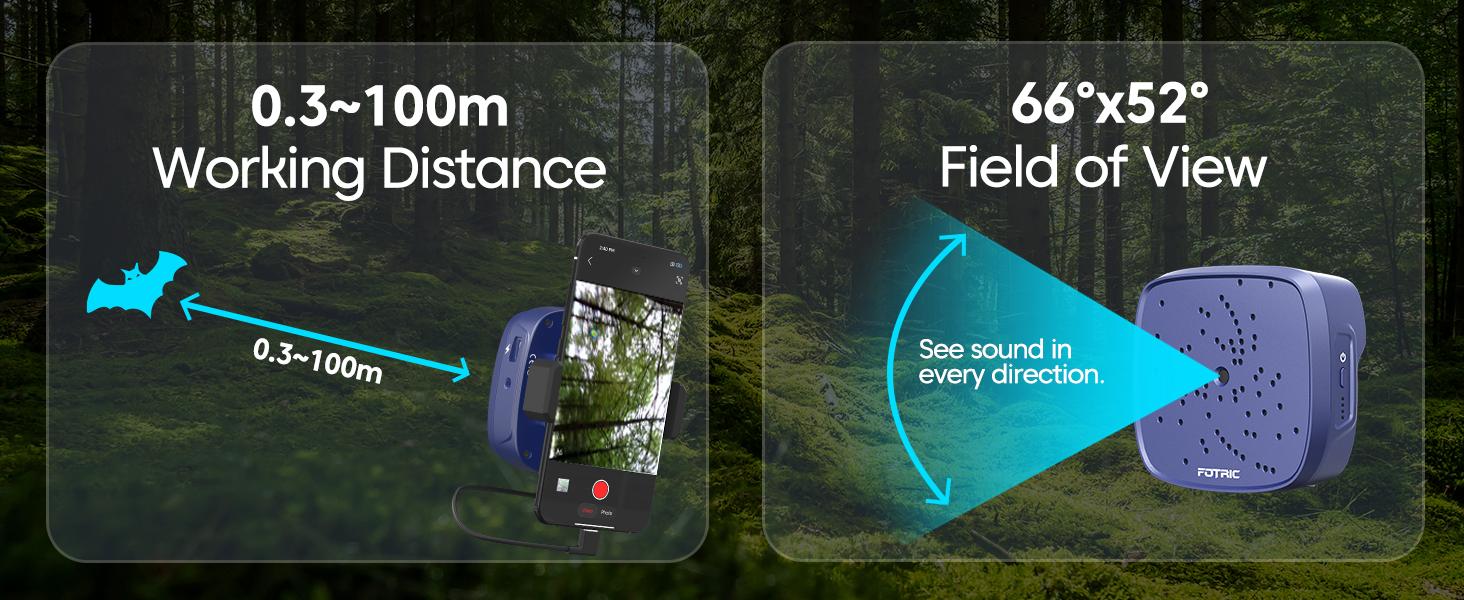

Léger à 240 g, avec une protection IP54 et une batterie de 4 heures. Il couvre des distances de 0,3 à 100 m avec un champ de vision (FOV) de 66° × 52°. Le TD2 Geek est votre outil incontournable pour les levés de terrain, les projets éducatifs et l'exploration acoustique du bricolage.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Why do humans have two ears?
Ears are located on both sides of the head, we can hence determine the direction of a sound source by calculating the time and intensity differences between the sound from the left and right ear.
Augment Your Hearing
TD2 Geek is like a hearing system with 64 "ears", which "listens" to sounds from different angles simultaneously through array microphones and reconstructs the direction of the sound source in three dimensions to see where it comes from.
Everything You Need, Right Out of the Box
Plug in. Open the app. You're ready.

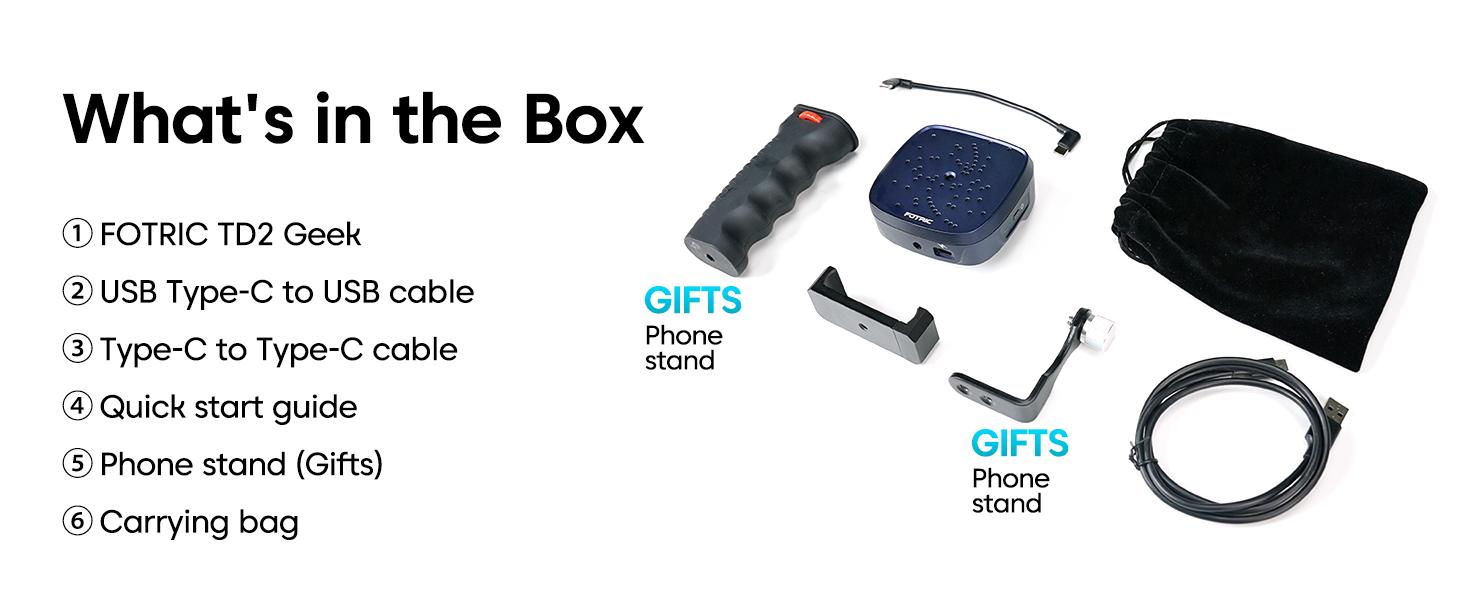

What's Included
- FOTRIC TD2 Geek
- USB Type-C to USB Cable
- Type-C to Type-C Cable
- Quick Start Guide
- Phone Stand (Gift)
- Carrying Bag

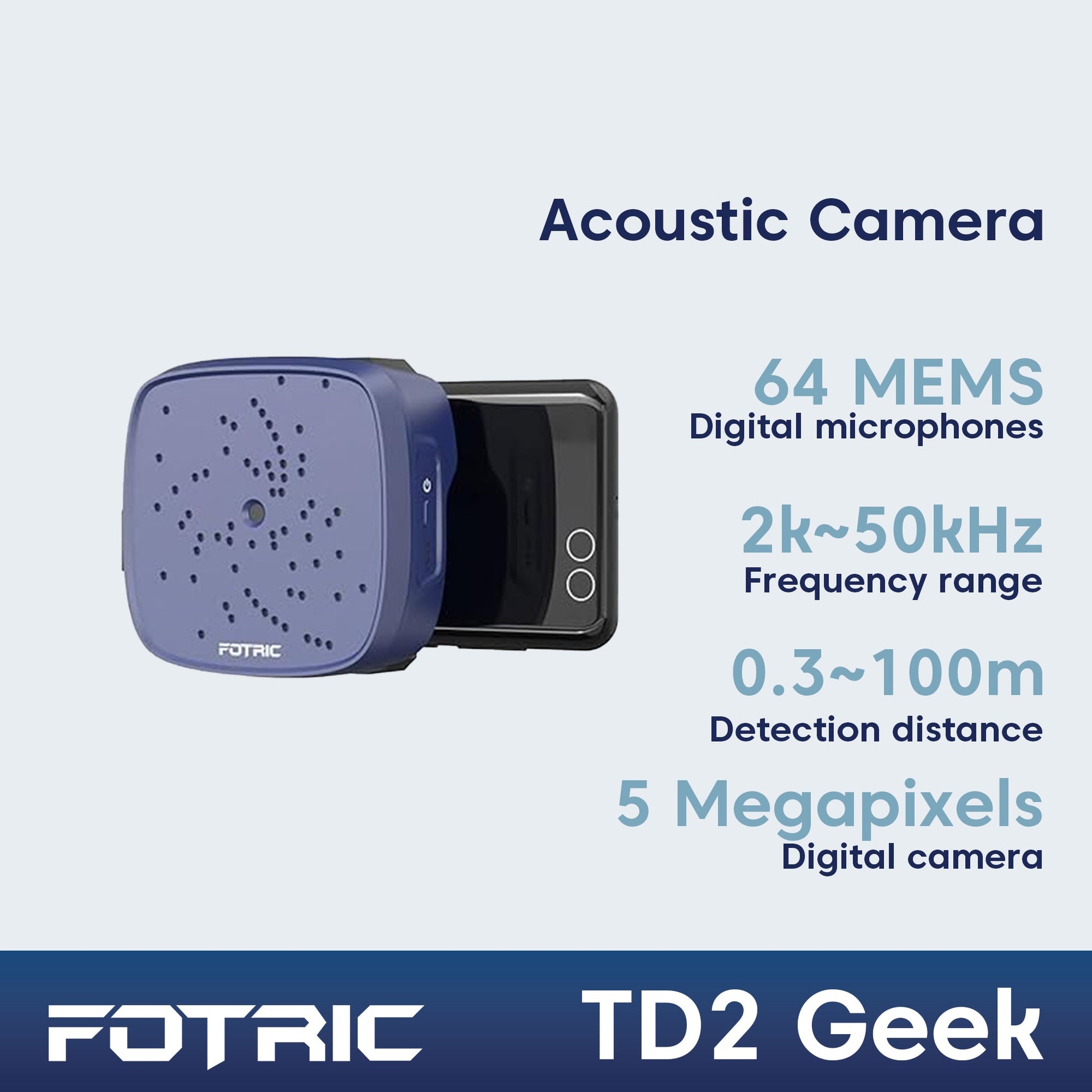

Technical Specifications
Microphone Channels
64 MEMS Digital Microphones

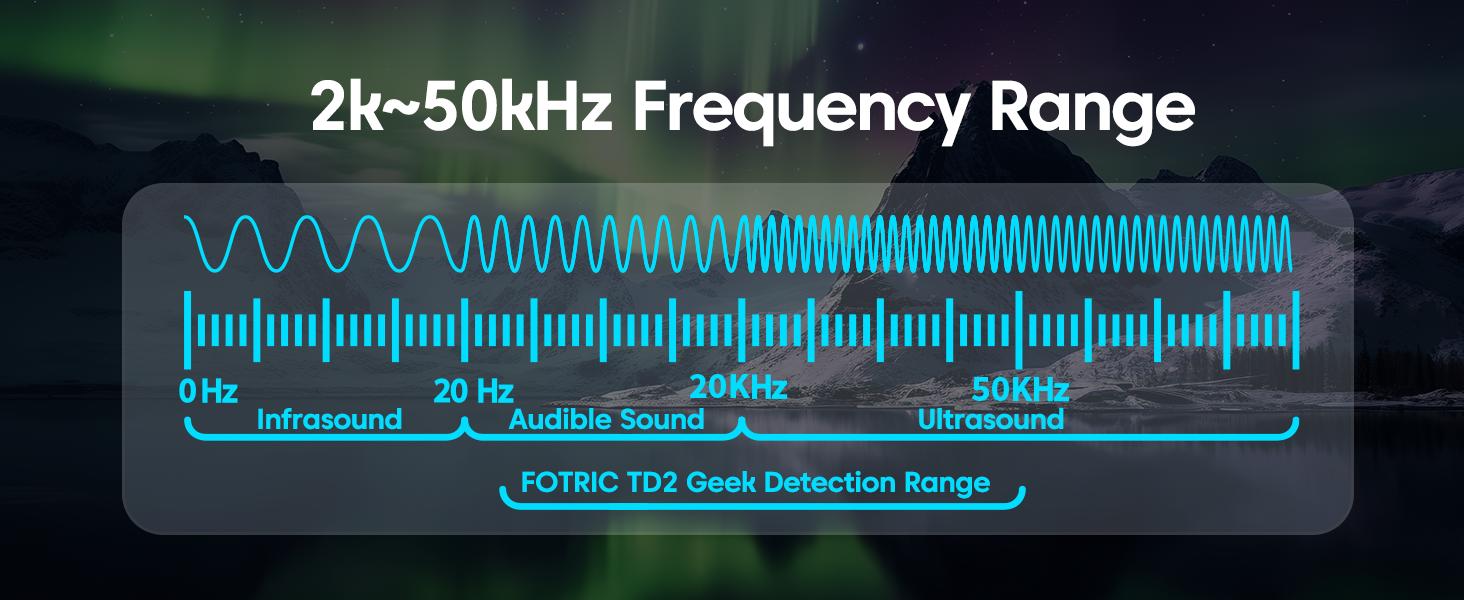

Frequency Range
2 kHz – 50 kHz
Field of View (FOV)
66° × 52°
Detection Distance
0.3 – 100 m
Digital Camera
5 MP
Battery Life
4 hours (self-powered)
Enclosure Rating
IP54
Weight
240 g
Connection
USB Type-C
Compatibility
Android via FOTRIC Genie App
FAQ
FAQ
Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.
View All Support ResourcesWhat smartphones are compatible with the TD2 Geek? Does it work with iOS/iPhones?
The TD2 Geek is designed exclusively for Android devices and does not support Apple iPhones. Your smartphone must run Android 12 or above and have the OTG (On-The-Go) function enabled in the settings.
How does the TD2 Geek work?
It uses an array of 64 MEMS microphones to capture sound from multiple directions simultaneously. It calculates the direction and intensity of each sound source and creates a colorful "sound map" overlaid on a real-time camera image, allowing you to visually locate sounds—including ultrasonic frequencies beyond human hearing.
What kind of sounds or faults can the TD2 Geek detect?
The device is highly versatile and can detect:
- Industrial: Compressed air leaks, mechanical friction/abnormal noise, and high-frequency humming from electrical equipment.
- Everyday & Geek: Noises behind walls, nature sounds (bird/insect tracking), and even music visualization.
What is the detection distance and frequency range?
The effective detection range is 0.3m to 100m. It covers a frequency range of 2kHz to 50kHz, which is optimized for both industrial leak/fault detection and everyday consumer applications. The frequency span can be manually adjusted in the app.
How long does the battery last? Will it drain my phone's battery?

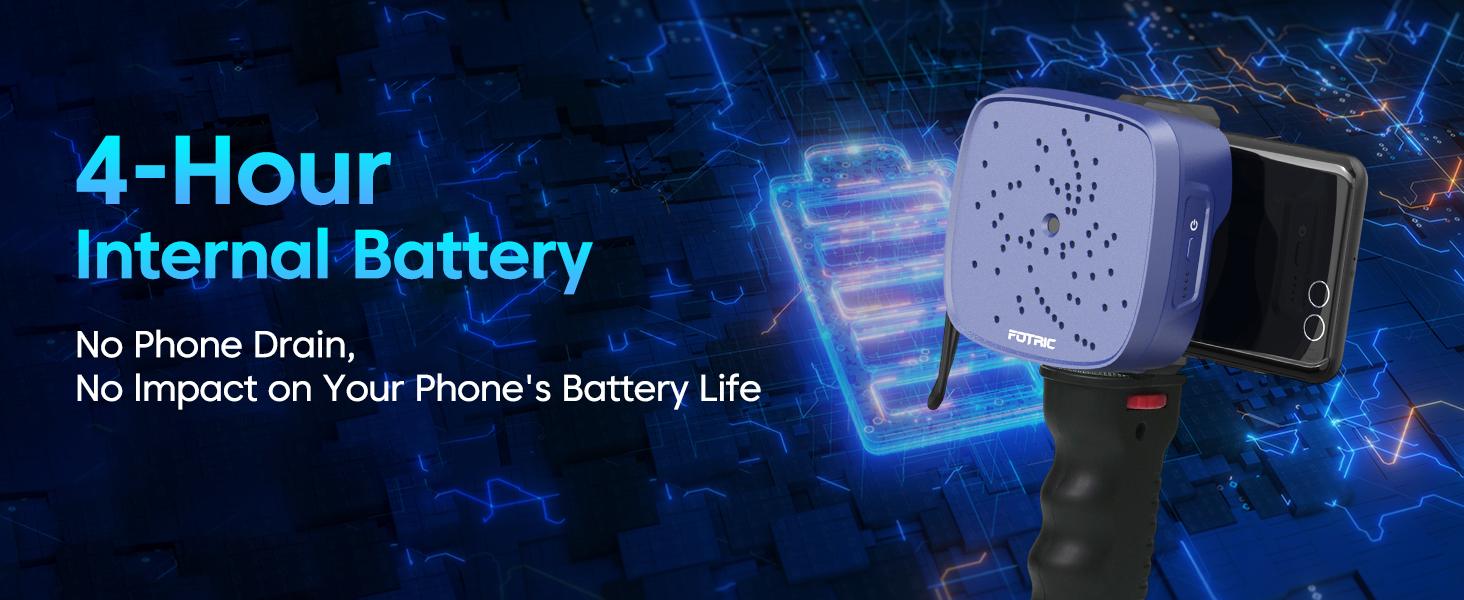

The TD2 Geek features its own built-in battery that provides approximately 4 hours of continuous operating time. Because it has an independent power source, it will not drain your phone's battery during use.
What kind of acoustic imaging modes are available?
The FOTRIC Genie app provides three professional visualization modes:
- Single-source: Highlights only the strongest sound pressure level area on the screen.
- Multi-source: Displays multiple strong sound sources simultaneously.
- Hologram: Displays the overall sound pressure distribution, giving you a complete picture of the surrounding acoustic environment.
